Reading House Plans For Dummies Construction plans blueprints are scaled down representations of the final project at a ratio of the actual size For example 1 8 1 one eighth inch equals one foot When construction plans are scaled it helps to put the part into a print size drawing that is easily read by the crew
Once you understand the symbols on a house plan you ll see the house the way he does Here are some basics on reading plans House plans are drawn to scale meaning that when you multiply the lengths of the lines in your plans by a previously determined number you wind up with their length in real life When we plan to build a new home the floor plan is a treasure map written in a symbolic language and promising the fulfillment of a dream When we read a floor plan with dimensions we imagine the simple lines and arc s stretching into walls doors and windows we imagine ourselves in a home and we wonder how the spaces will
Reading House Plans For Dummies
Reading House Plans For Dummies
https://66.media.tumblr.com/3abfe6e0712f7c81a8547200cc07af86/tumblr_inline_omwiskBnjC1ts2nl8_1280.jpg

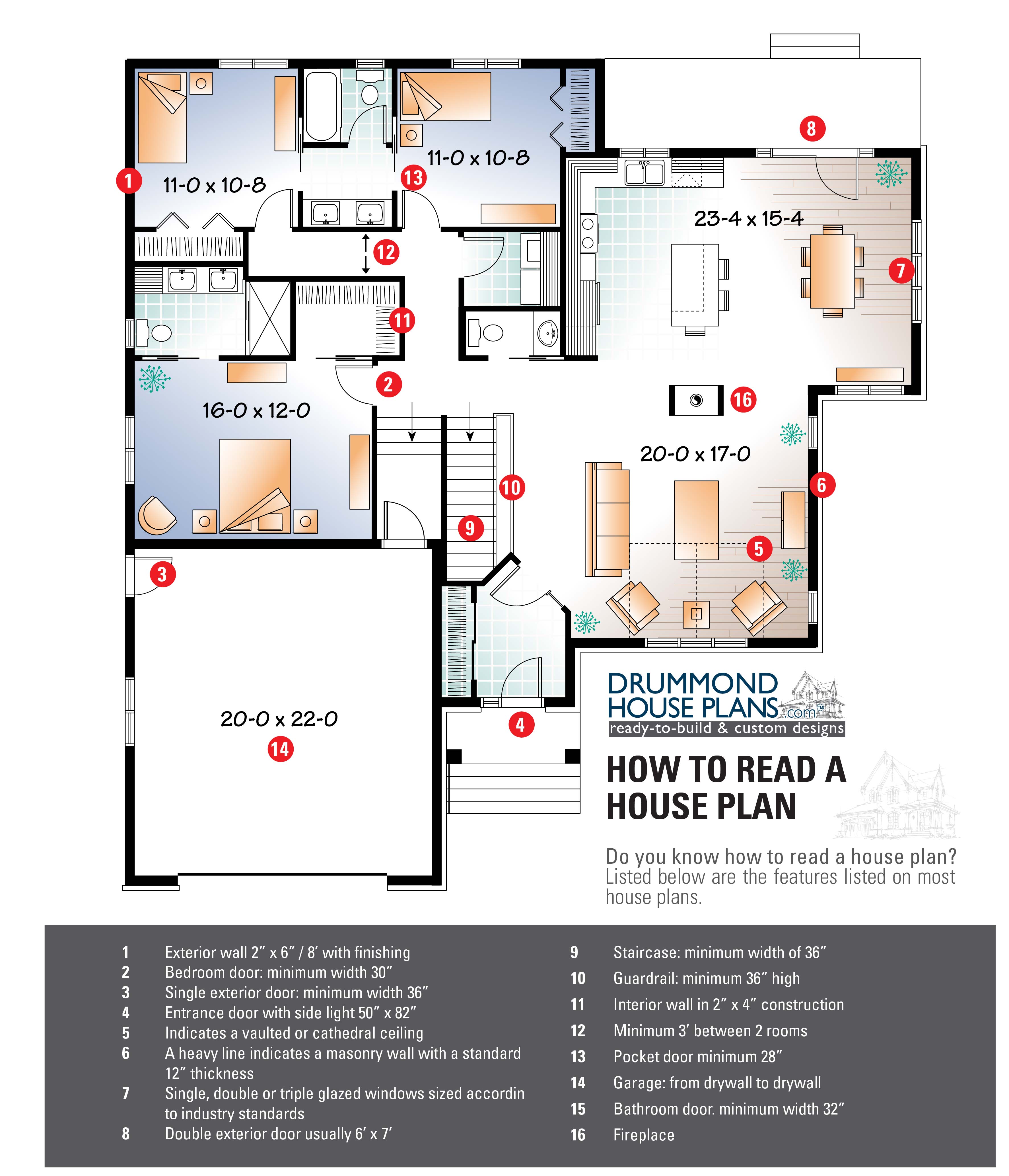

How To Read A House Plan Blogue Dessins Drummond
